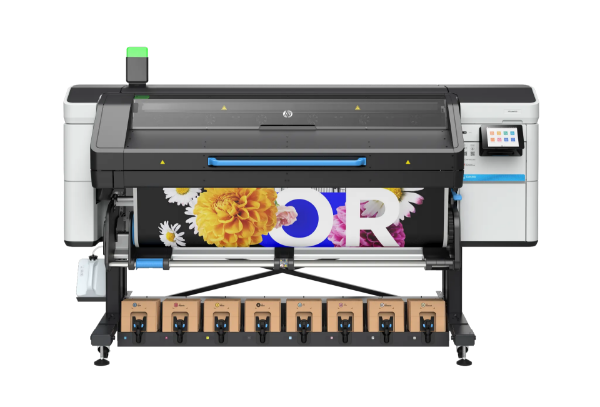

HP Latex 830 64" Wide Format Printer
Built For Volume And Consistency
Unlock the full potential of your print shop with the HP Latex 830 – a next-generation 64-inch wide format printer engineered for high-volume production and maximum efficiency. With enhanced speed, larger ink capacity, and a focus on cost-effective output, the HP Latex 830 is ideal for busy print environments that demand quality and performance.
Designed to streamline your workflow and deliver stunning, high-impact prints with minimal downtime, the Latex 830 enables you to produce more jobs, faster—while leading with sustainability.
Key Features:
64" Maximum Media Width
Handle large format jobs with ease – ideal for banners, wall coverings, vehicle wraps, and more.
3-Liter Cartridges
Minimize cartridge changes, lower running costs, and boost long-run productivity with high-capacity 3-liter HP Latex Inks.
Hot-Swap Functionality
Swap cartridges on the fly without stopping production—keep your jobs running and your deadlines on track.
Instant-Dry Prints
Achieve production speeds of up to 388 ft²/hr (36 m²/hr) with prints that dry instantly. Eliminate smudging and waiting—prints are ready to finish or ship immediately.
Universal Printheads
Simplify maintenance and reduce downtime with HP’s universal printheads and 50% longer-life maintenance cartridge.
HP Pixel Control Technology
Achieve consistent, vibrant color with pinpoint precision using HP’s exclusive Pixel Control ink mixing.
HP Embedded Spectrophotometer
Ensure accurate color management and profiling, job after job.
HP PrintOS® Integration
Monitor, manage, and optimize print jobs remotely with HP PrintOS Production Hub and the HP Sustainability Amplifier.
Eco-Conscious Printing
UL ECOLOGO®-certified HP Latex Inks offer odorless prints. Plus, recycle used supplies via HP Planet Partners and choose one of the industry's only EPEAT® Climate+ registered printers.
Quick Media Loading
Spindle-less front loading saves time and enables edge-to-edge printing to reduce media waste.
Performance You Can Count On!
- Speed per Hour:
- 4-pass: Up to 388 ft²/hr (36 m²/hr)
- 6-pass: Up to 226 ft²/hr (21 m²/hr)
- 8-pass: Up to 183 ft²/hr (17 m²/hr)
- Maximum Roll Size: 121 lbs (55 kg)
- White Ink: Not included in this model
- Double-Sided Printing: Automated for high-precision, efficient two-sided jobs
Why Choose the HP Latex 830?
✅ Boost Your Throughput
Take on more jobs with faster print speeds and zero drying delay.
✅ Optimize Production Costs
Drive efficiency with 3-liter cartridges and hot-swap capability—reduce manual intervention and media waste.
✅ Expand Your Applications
From retail signage to custom interior décor, the 830’s high-performance output gives you the flexibility to serve more markets.
✅ Lead with Sustainability
Print odorless graphics that meet strict environmental certifications. Recycle supplies with HP Planet Partners and lead your market with EPEAT Climate+ registered technology.
✅ Protect Your Work
Confidently deliver long-lasting results, backed by the 3M™ MCS™ Warranty and ICS Performance Guarantee.
✅ Color You Can Count On
Deliver vivid colors and sharp text, powered by HP’s advanced Latex Inks and non-circular nozzle printhead design.
Technical Specifications
- Print speed: 387 ft²/hr – Draft (4-pass) in Banner ; 269 ft²/hr – Speed (6-pass) ; 215 ft²/hr- Standard (8-pass) ; 183 ft²/hr- Quality (12-pass) ; 118 ft²/hr- High Quality (16-pass)
- Print resolution: Up to 1200 x 1200 dpi
- Technology: HP Latex Printing Technologies
- Ink types: Water-based HP Latex Inks
- Ink cartridges: 8 (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Optimizer, Overcoat) cartridges
- Cartridge size: 3 L per cartridge
- Printheads: 8 (7 HP Latex Printheads, 1 HP Latex Optimizer)
Media
- Applications: Banners; Displays; Exhibition and event graphics; Exterior signage; Indoor posters; Interior decoration; Light boxes - film; Light boxes - paper; Murals; POP/POS; Posters; Textile; Vehicle graphics; Window graphics; Stickers
- Handling: Roll feed, take-up reel, wiper roller, media saver, automatic horizontal cutter(for vinyl, banner, canvas, paper-based media, and film)
- Maximum media width: 64 in
- Media Rolls: 1
- Roll size: 16.5 to 64-in rolls (23 to 64-in rolls with full support)
- Maximum roll weight: 121 lb
- Maximum roll diameter: 9.8 in
- Standard media sizes: 24", 36", 42", 54", 60", 64"
- Supported thickness: 19.7 mil
- Media types: Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles
Connectivity
- Interfaces: Gigabit Ethernet (1000Base-T)
Dimensions
- Product (W x D x H): 101.7 x 33.6 x 55.2 in
- Shipping: 108.4 x 43.3 x 65.6 in
- Operating area: 110 x 82.7 in
Weight
- Product: 644 lb
- Shipping: 960 lb
Included in the Box
HP Latex 830 Printer, printheads, maintenance cartridge with ink collection unit, additional ink collection unit, Condensation collector kit, power cords, Beacon accessory, manual purge syringe kit, user maintenance kit, edge holders, 2-in spindle adaptor, lubrication felts kit, quick reference guide, documentation software, spanner size
Environmental Ranges
- Operating temperature: 59 to 86°F
- Operating humidity: 20 to 80% RH (non-condensing)
Acoustics
- Sound pressure: Printing: 60 dB(A), Idle: 38 dB(A), Sleep: <20 dB(A)
- Sound power: Printing: 7.8 B(A), Idle: 5.5 B(A), Sleep: <4.0 B(A)
Power
- Consumption: 1.5–2.5 kW (5 kW peak during printing), 95 W (ready)
- Requirements: Input voltage (auto-ranging) 200–240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); two power cords; 13 A max printer power cord; 9 A max curing power cord
Certification
- Safety: IEC 60950-1+A1+A2, IEC 62368-1, CSA listed, CE compliant, EAC, CCC
- Electromagnetic: Class A compliant – FCC, ICES, EMC Directive, RCM, VCCI, KCC, CCC
- Environmental: ENERGY STAR®, RoHS, REACH, EPEAT, OSHA, CE, AgBB, French VOCA+, UL GREENGUARD Gold, UL ECOLOGO
Warranty
One-year limited hardware warranty
Specification Footnotes
- Print speeds may vary due to the adaptive printing mechanism to avoid image quality defects.
- Printmode names in color modes are based on Self-Adhesive Vinyl applications. Names and Print speeds may vary due to the adaptive printing mechanism to avoid image quality defects and the application you produce.
- Wiper roller is an optional accessory.
- Automatic horizontal cutter is for use with thinner banners and canvas only. It is recommended to perform a test.
- Textile Kit Accessory required for long runs of textile and porous textile.
- See the HP REACH Declaration published at https://h20195.www2.hp.com/v2/GetDocument.aspx?docname=c05996997 .
- UL GREENGUARD Gold Certified prints - HP PVC-free Wall Paper printed with Original HP Latex Inks is UL GREENGUARD Gold Certified. UL GREENGUARD Gold Certification to UL 2818 demonstrates that products are certified to UL’s GREENGUARD standards for low chemical emissions into indoor air during product usage. For more information, visit ul.com/gg or greenguard.org .
- FSC®certified - HP has a policy for offering Forest Stewardship Council® (FSC®)-certified papers that are sourced from FSC®-certified forests and other controlled sources. BMG trademark license code FSC®-C115319, see fsc.org. HP trademark license code FSC®-C017543, see fsc.org. Not all FSC®-certified products are available in all regions.
- AgBB - HP PVC-free Wall Paper printed with HP Latex Inks meets AgBB criteria for health-related evaluation of VOC emissions of indoor building products. See umweltbundesamt.de/en/topics/health/commissions-working-groups/committeefor-health-related-evaluation-of-building .
- CE mark - Self-declared according to European Standard EN15102.
- PVC-free alternative - Based on HP internal and third-party testing chemical analysis that demonstrates elemental chlorine to be at or below 200 ppm. Presence of chlorine is attributed to residual chlorine used in the paper-making process, and not due to the presence of PVC.
- Product consists of PET fabric and coatings. 62% by weight of the product consists of recycled content. Base material fabric is made from 100% recycled resin.
- Product consists of PET fabric and coatings. With liner attached, 69% by weight of the product consists of recycled content. Base material fabric is made from 100% recycled resin.
